Reduction machine steel shell furnace

Name: Reduction machine steel shell furnace
Brand: huarui
Price: 10000 USD

Brand Name : huarui

Certification : ISO9001

Place of Origin : China

MOQ : 1 unit

Price : USD10000-1000000

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per mt

Delivery Time : 15-30 days

Packaging Details : water proof packing

Melting Material : Steel

Type : Electric Induction Furnace

Furnace Structure : Steel Shell

Melting Temperature : 1600-1800°C

Lining Material : Refractory

Durability : High

Energy Saving : High

Tapping Method : Bottom tapping

Power : 1000-5000 kW

Control System : PLC

Melting Time : Short

Temperature Accuracy : High

Cooling Method : Water-cooled

Contact Now

Reducer type: RSZ-231,431,531,631

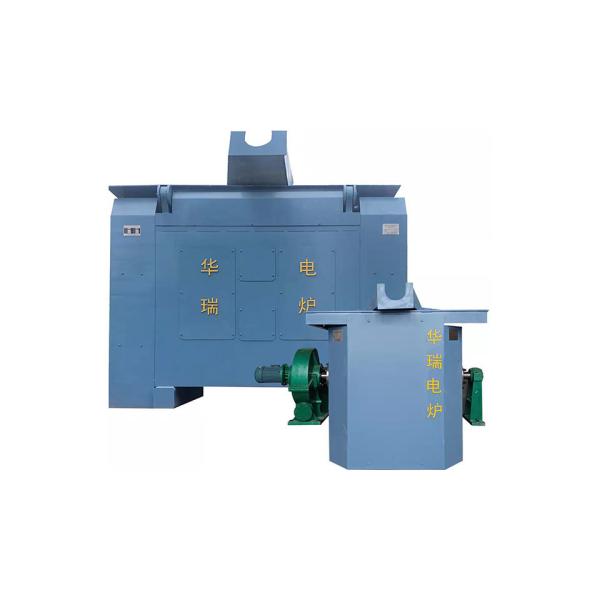

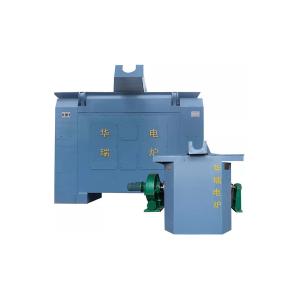

After the steel shell furnace connect with the reducer, as far the power is supplied to the reducer, it can turn over the furnace.Then, the iron water inside the furnace body will be poured out.The type under RSZ-531, the reducer have a manual crank wheel. It can be operated by hand to pour out the iron water when there is no electric power.

The structure of reducer type steel shell furnace is compact, so it is flexible, occupies a small area. Because there is no hydraulic station,without the oil circuit part, the mainenance is easy and the failure rate is low.

In the event of a sudden power outage, the iron water inside the furnace body with a reducer can be poured out manually.

Reducer also can be used on Aluminium shell furnace.

The steel shell furnace body include for parts: steel plate shell, magnetic yoke, induction coil and insulating material.

The reducer type steel shell furnace mainly used in the situation of furnace body of 1.5 tons or less.
